Short Path Distillation

The most complete kit out of the box!

Now Includes Free Shipping >>>

short path distillation

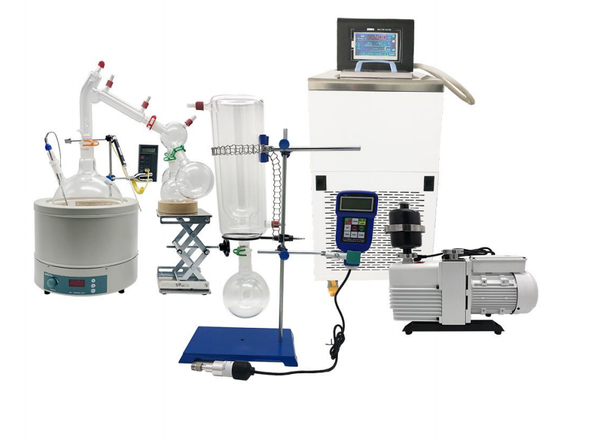

turnkey setup includes all necessary components to perform distillation easily, the systems includes reliable glassware and equipment. Features: Heavy duty Borosilicate 3.3 glass for durability Downward material drain port Vacuum jacketed distillation head with Vigreux stages Boiling flask to distillation port: 34/45 joint Thermo port on boiling flask: 24/40 joint Thermo port on distillation head: 14/20 joints Recirculating fluid and vacuum connectors: 3/8" hose barb Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks Cold trap protects the vacuum pump from contamination and damage of vapors

Short-Path Distillation

is a thermal separation process for thermal sensitive products.Typical applications are high molecular organic compounds particularly from the fields of chemistry, pharmaceutical and food industry. Distillation is
one of the most important thermal separation methods. Short-Path Distillation is a continuous separation process working under vacuum conditions. Evaporation takes place from a heated wiped film. Caused by the pressure drop between the place of vaporization and the vacuum system the operating pressure in typical wiped film evaporators with external condenser is limited to some millibars. The considerably lower pressure in the Short Path Evaporator is obtained by the short distance for the vapors on their way from the evaporator surface to the condenser. In addition, the cross section area of flow is equal to the evaporator surface, so that there is only a minor pressure drop between evaporator and condenser - a detail which is absolutely necessary for this process!

short path distillation
